X2

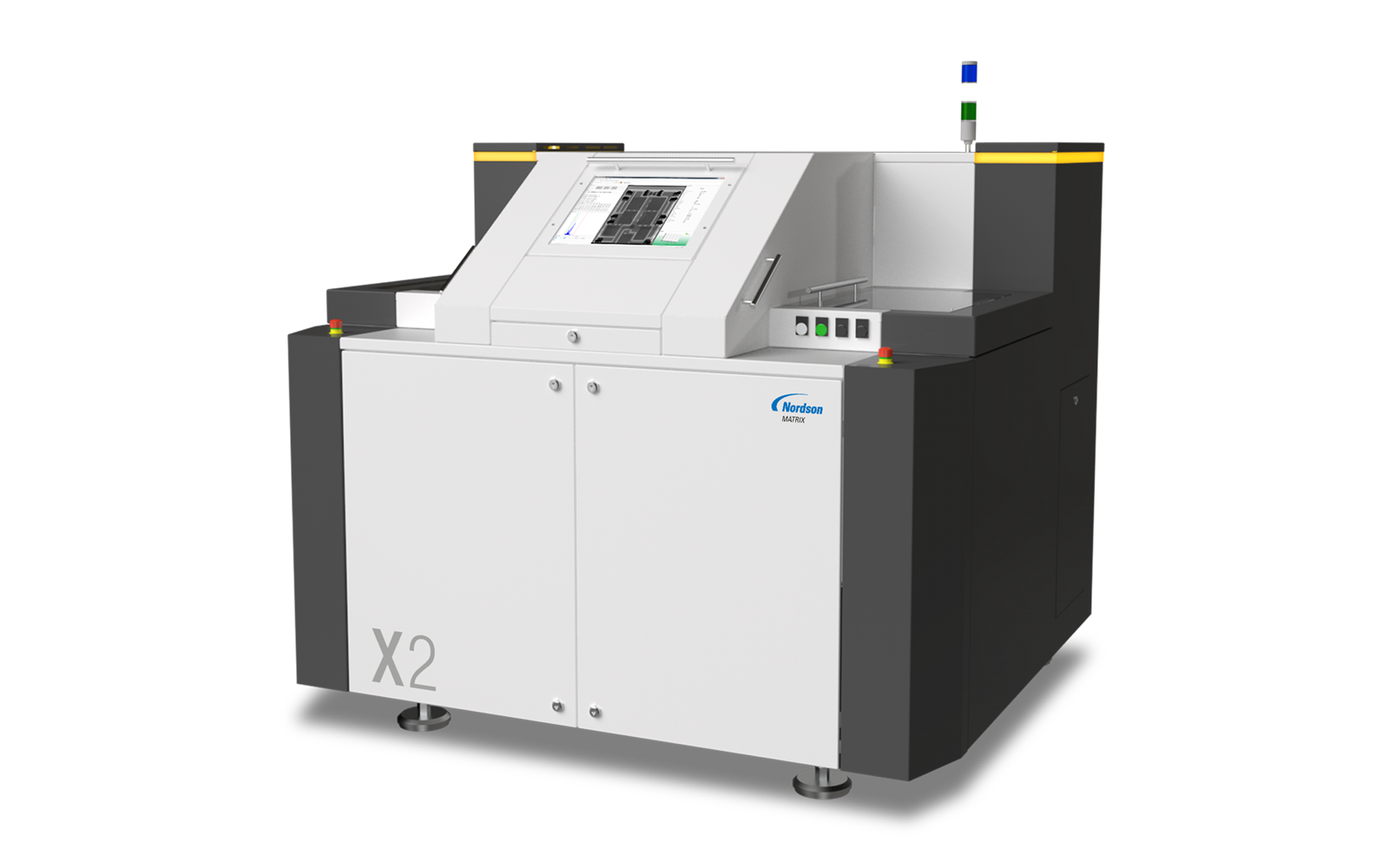

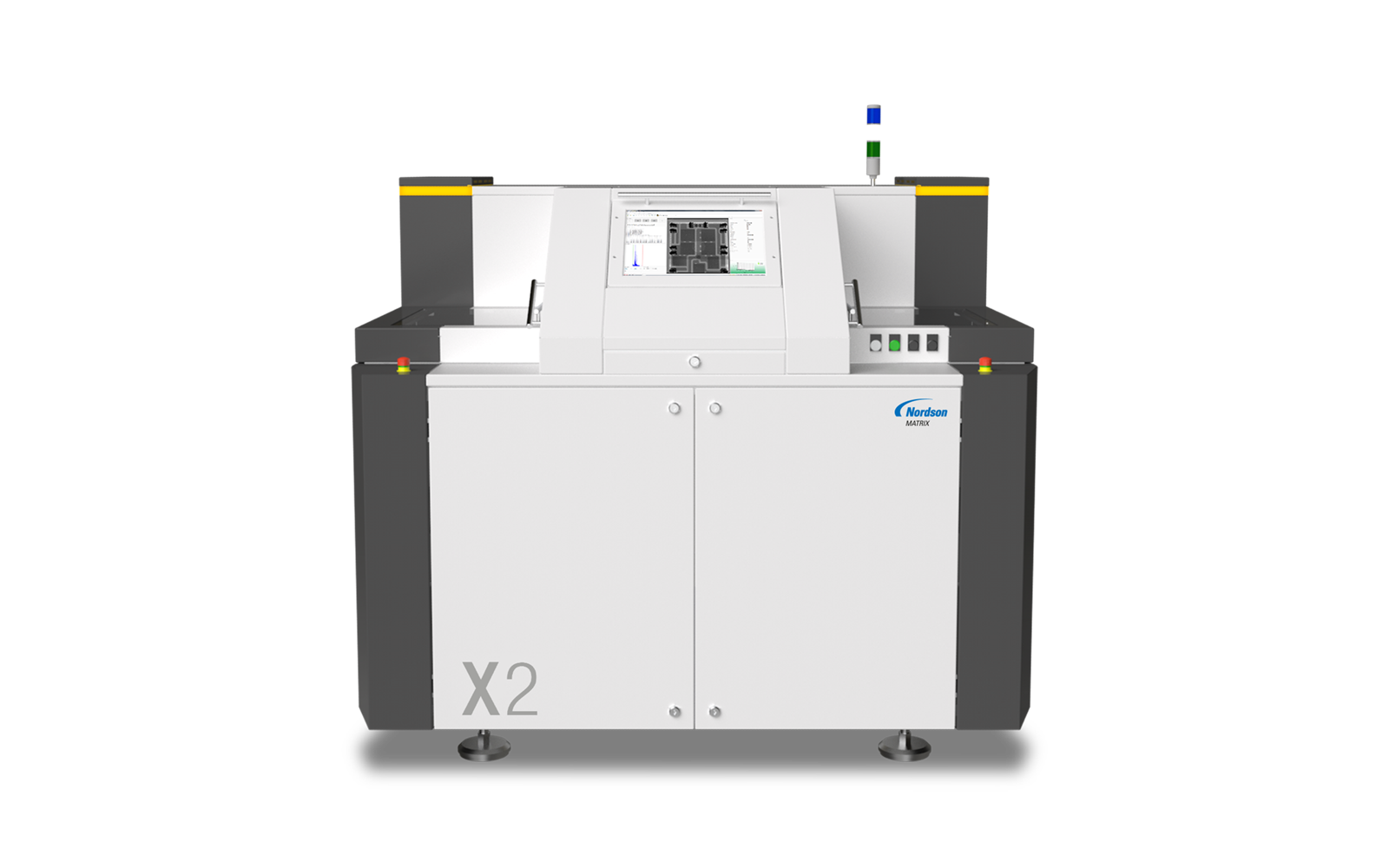

The X2 is an advanced In-line X-ray inspection system designed for high-speed automatic inspection in production lines. Transmission X-ray technology is combined with patented Slice-Filter-Technology (SFT) for double-sided PCB assembly and component inspection. The X2 features fully automatic inspection based on a CAD compiled inspection list and uses an inspection model library for the test-strategy definition. The motion system as well as the image acquisition chain meets all demands of high-speed inspection.

• High Speed Inline AXI system
• Maintenance free sealed X-ray tube and digital detector technology
• 3 axes programmable motion system with linear drive sample table for high speed inspection mode
• Automatic grey-level and geometrical calibration
• Barcode scanner (1D/2D) for serial number and product type selection
• In-line board handling with automatic width adjust

Transmission (2D)

5-6 images/sec

standard:
130kV/40W

optional:
100KV/20W
120kV/40W

standard:
Image Intensifier
(8-10bit, 1k x 1k)

optional:
CMOS Flatpanel Detector
(14 bit, 1k x 1k, 75 µm)
CMOS Flatpanel Detector
(14 bit, 1,5k x 1,5k, 75 µm)
CMOS Flatpanel Detector
(14 bit, 2,3k x 2,3k, 50 µm)
