X-series
High Speed
Inline AXI platform
Description

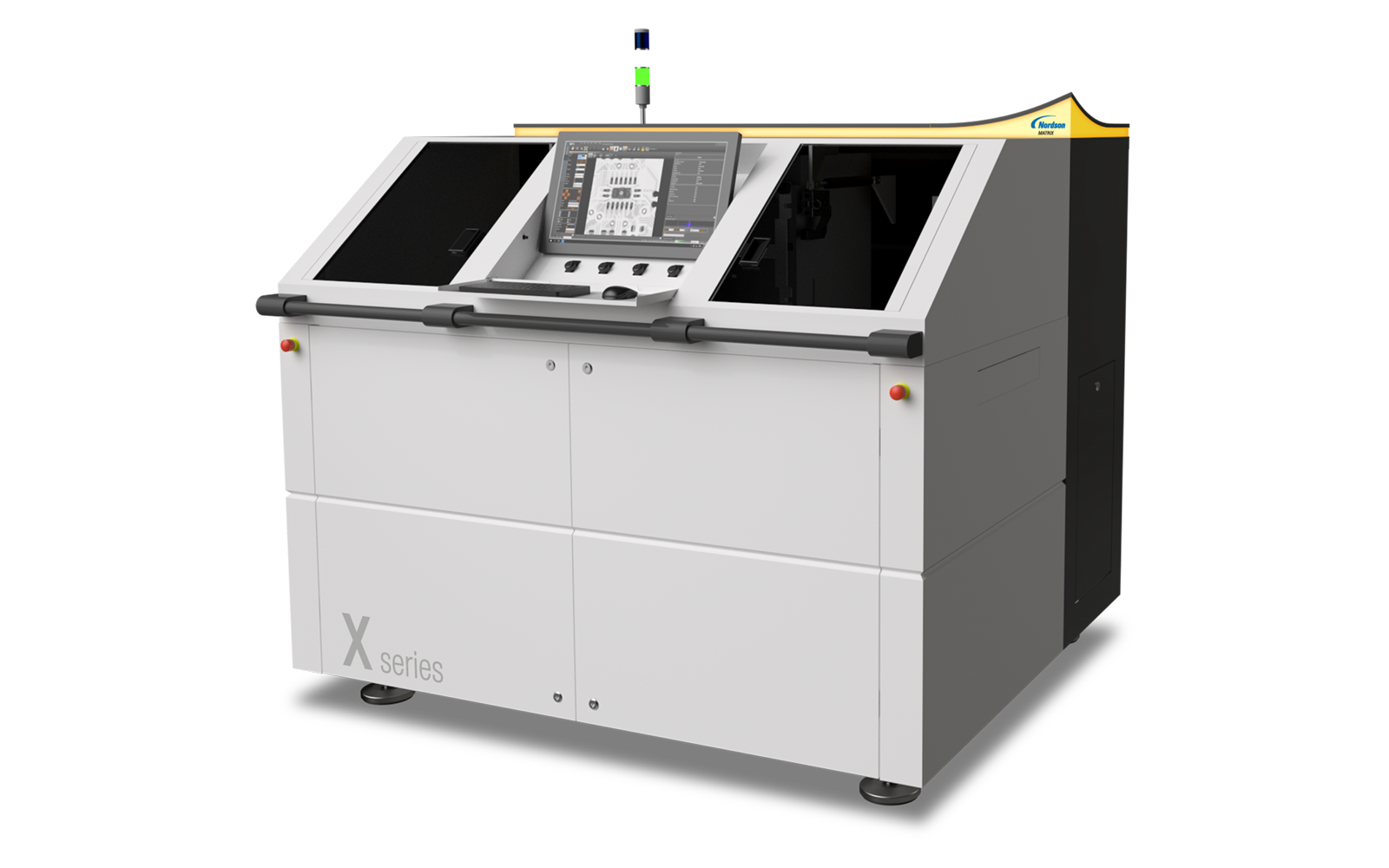

The X-platform series is a dedicated high speed inline automated X-ray inspection system for the inspection of PCB-assembly boards for single/multipanels or samples in trays. The system offers market leading inspection speed and is ideal for low-mix high-volume production environment.
X-ray System Features
- High Speed AXI System for Inline configurations
- Microfocus X-ray tube (sealed tube / maintenance free)
- Multiple programmable motion system with linear drives
- Digital CMOS flatpanel detector
- Automatic grey-level and geometrical calibration
- Barcode scanner for serial number and product type selection
- Full product traceability via customized MES-Interface
Highlights
- Hardware setup dedicated to PCB inspection
- High Speed setup for In-line pass through configuration
- High oblique angle
- Low dose radiation filter
Available Setups
- SMT setup for component and solder-joint inspection on PCB hybrid or chip level assembly processes
Available Configurations
Depending on the type of product & inspection task- X2 Transmission (2D) + SFT™
- X2.5 Transmission (2D) + SFT™ + Off-Axis (2.5D)
- X3 Transmission (2D) + SFT™ + Off-Axis (2.5D) + 3D SART
Applications
Inspection Technologies
Datasheet X-series SMT setup
